Foundry Facility
Infrastructure
- Plant Area : 1 lakh sq. ft.
- Shed Area : 40000 sq. ft.
- Line Type : Sinto (Japan) , Fully Automated
- Moulding line and Sand Plant both supplied by Sinto for better integration.
Operational Excellence
- Box Capacity : 600 x 508 x 200 mm
- Melting Capacity : 1.5 tons / hr.
- Melting furnace capacity @ 1.5 tons / hr, @500 kgs. Per batch
- Magnesium Treatment : Through wire
- Max. Bundle weight Capacity : 50 kgs.
- Core Shooter : 10 kgs. , Cold Type
- Job to Job Change over time : 5 mins
- Supplying Range : 10-40 kgs.
- Mould Prod. Capacity : 138mould/hr. (Non core)

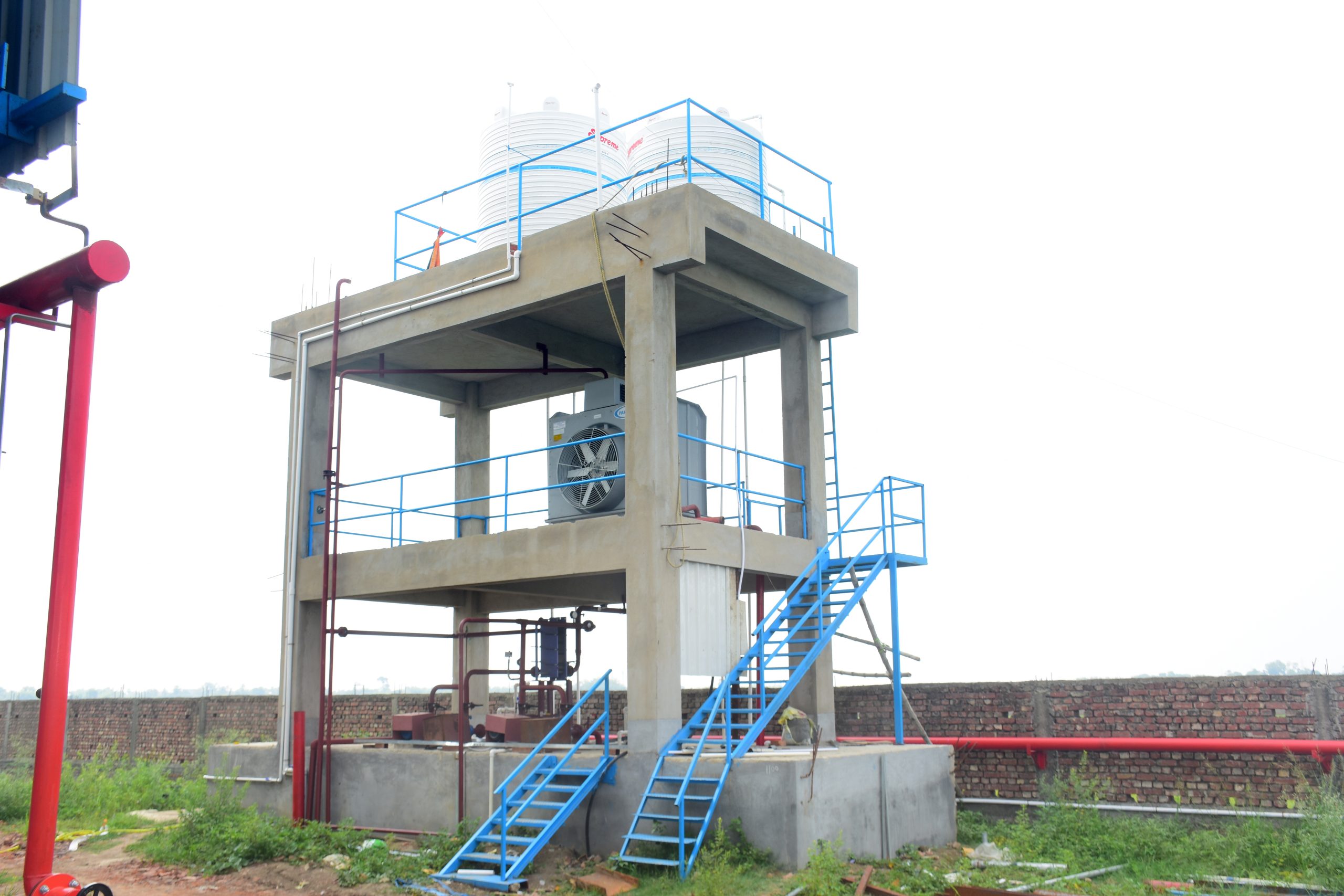

- Line Type : Auto line & Updated Cooling System.

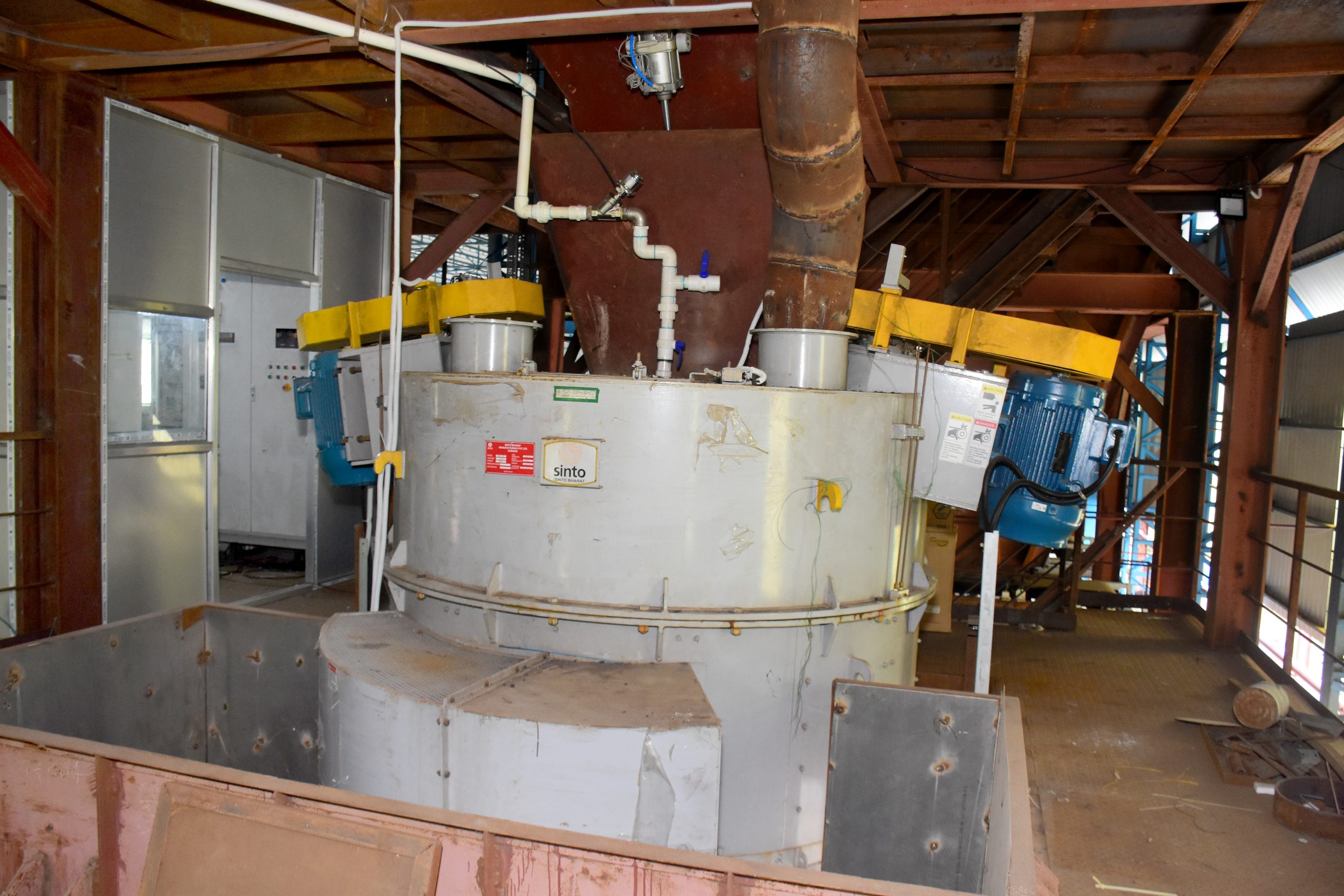

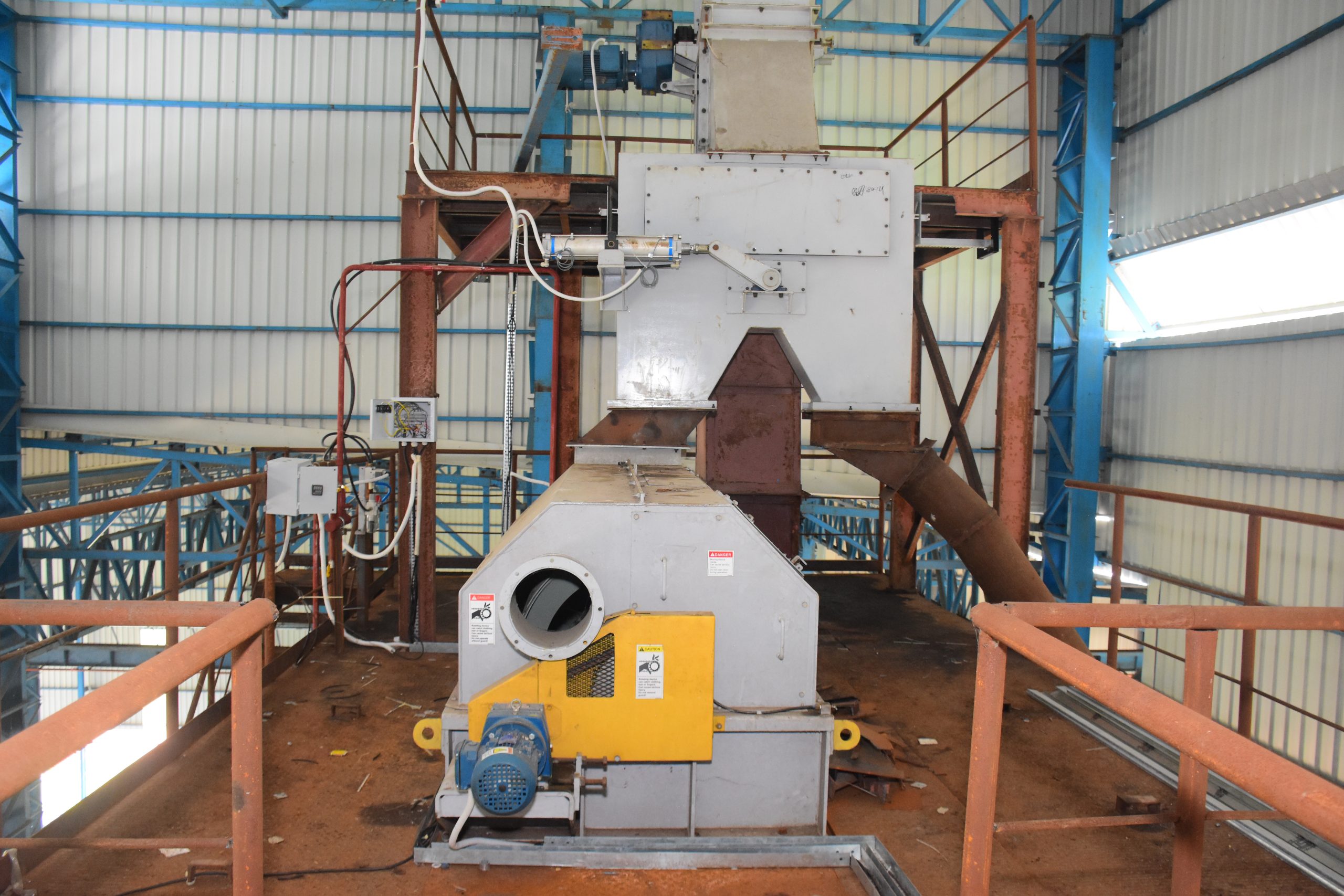

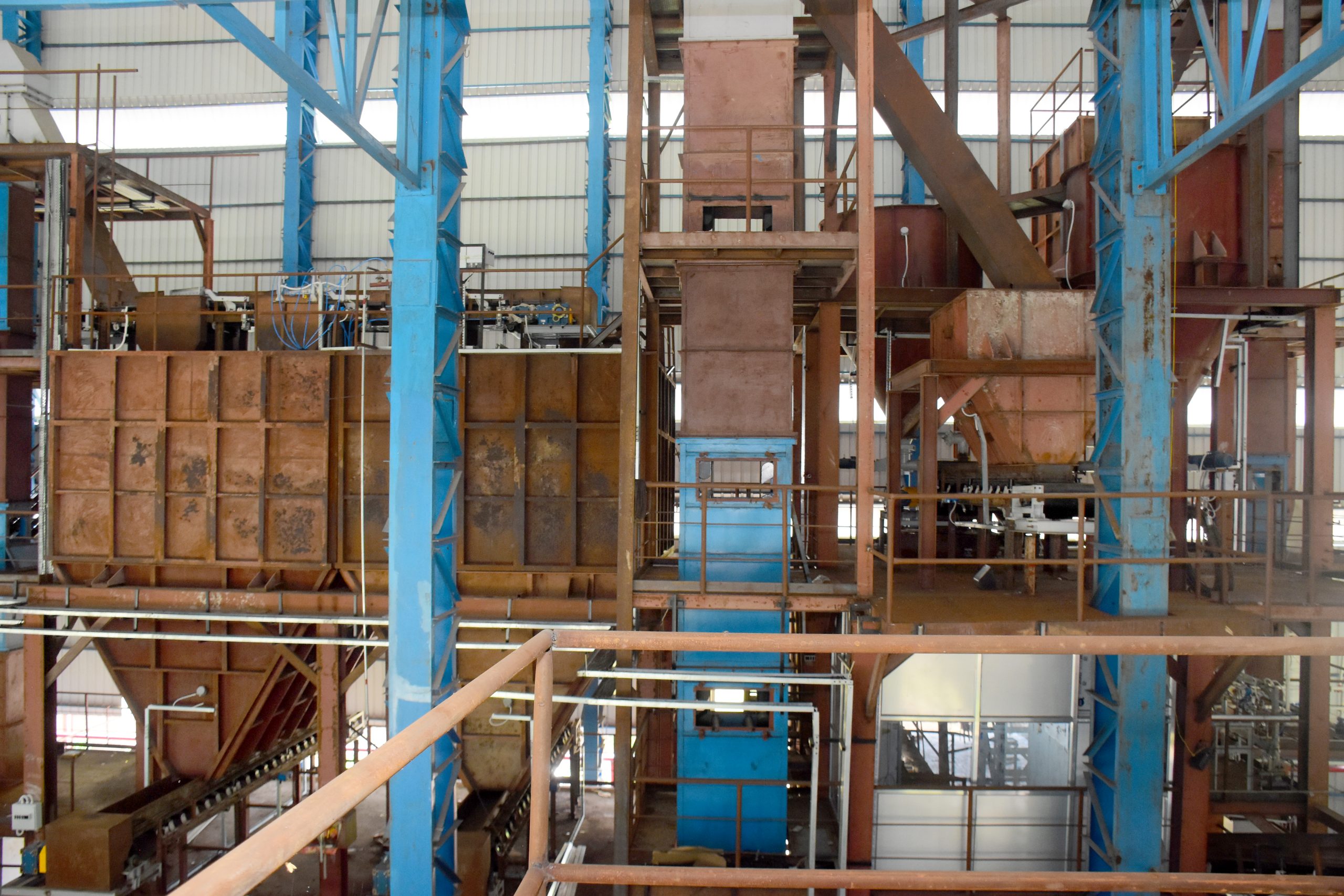

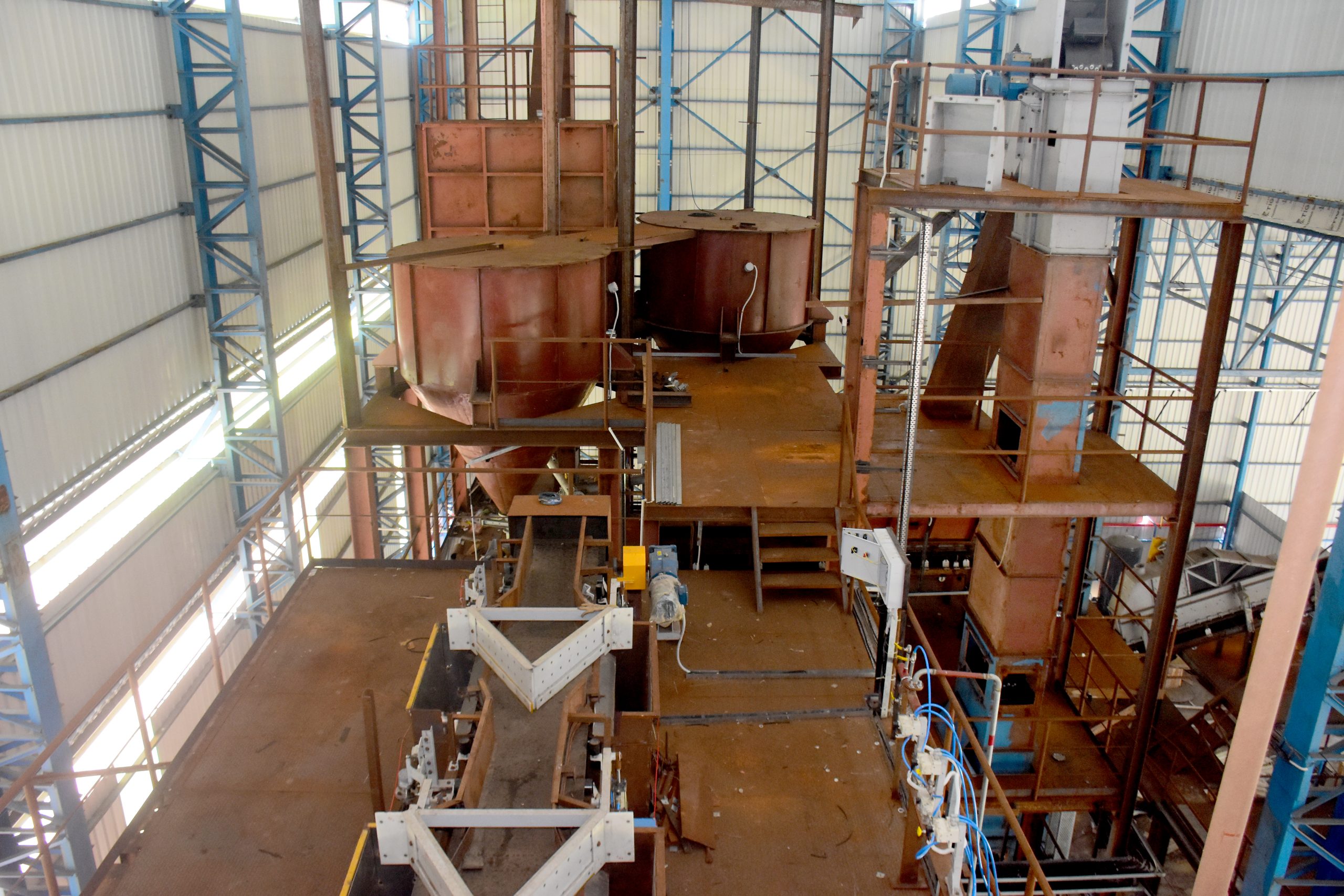

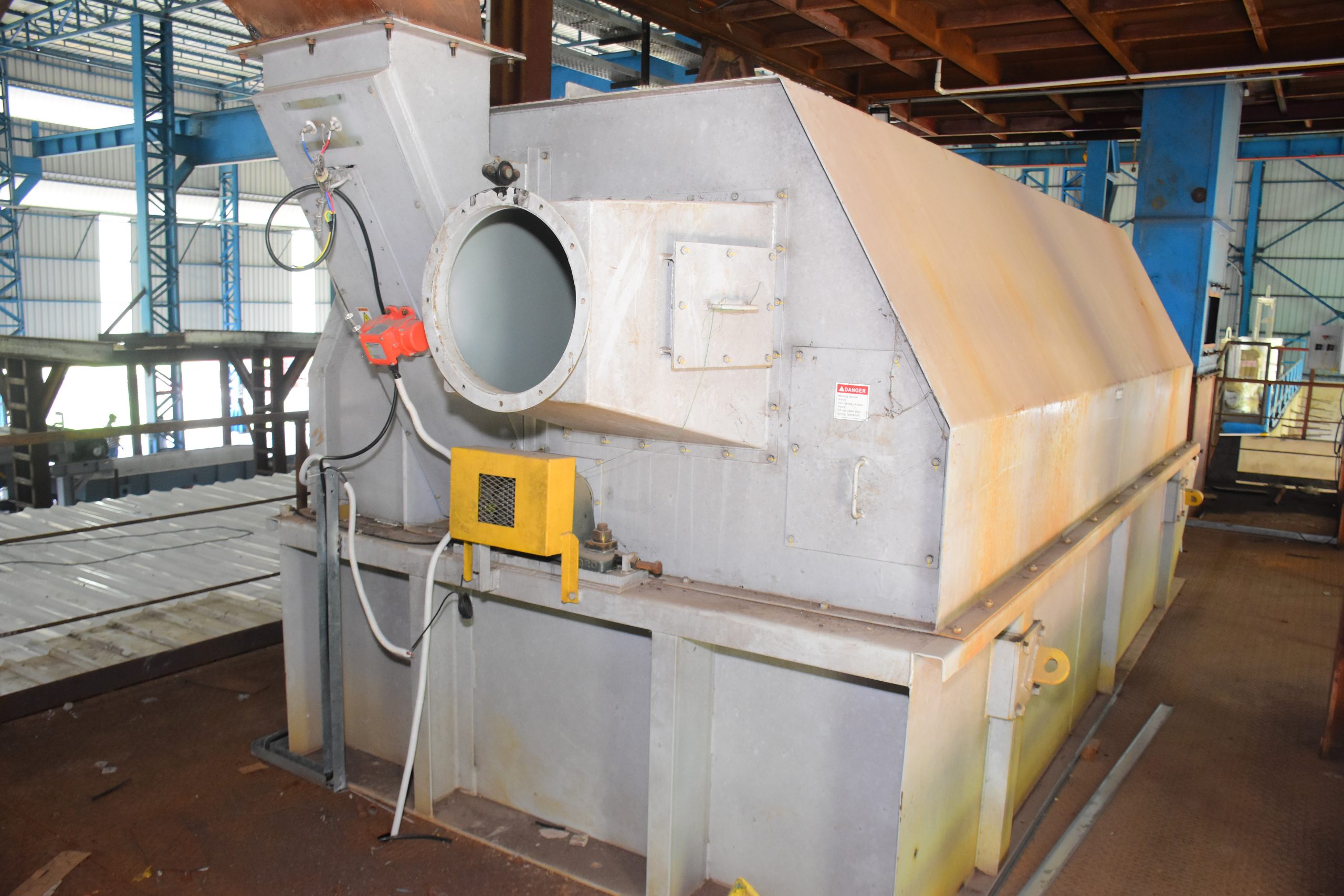

- Green Sand Preparation Capacity 30 ton/hr.
- Furnace make: Plasma Induction.
- Our Production Capacity 400 ton/month

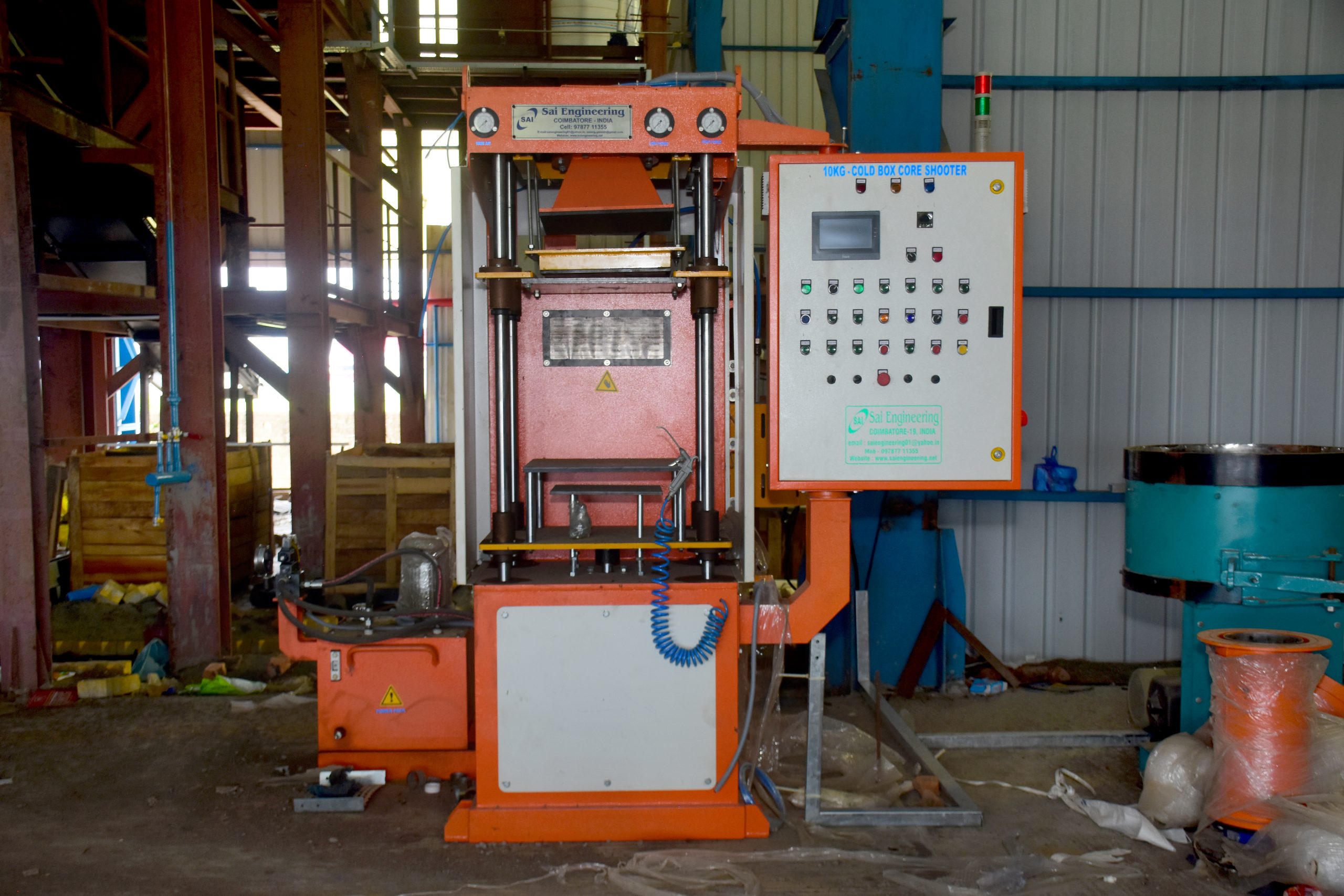

- Core Shooter : 10 kgs. , Cold Box Type

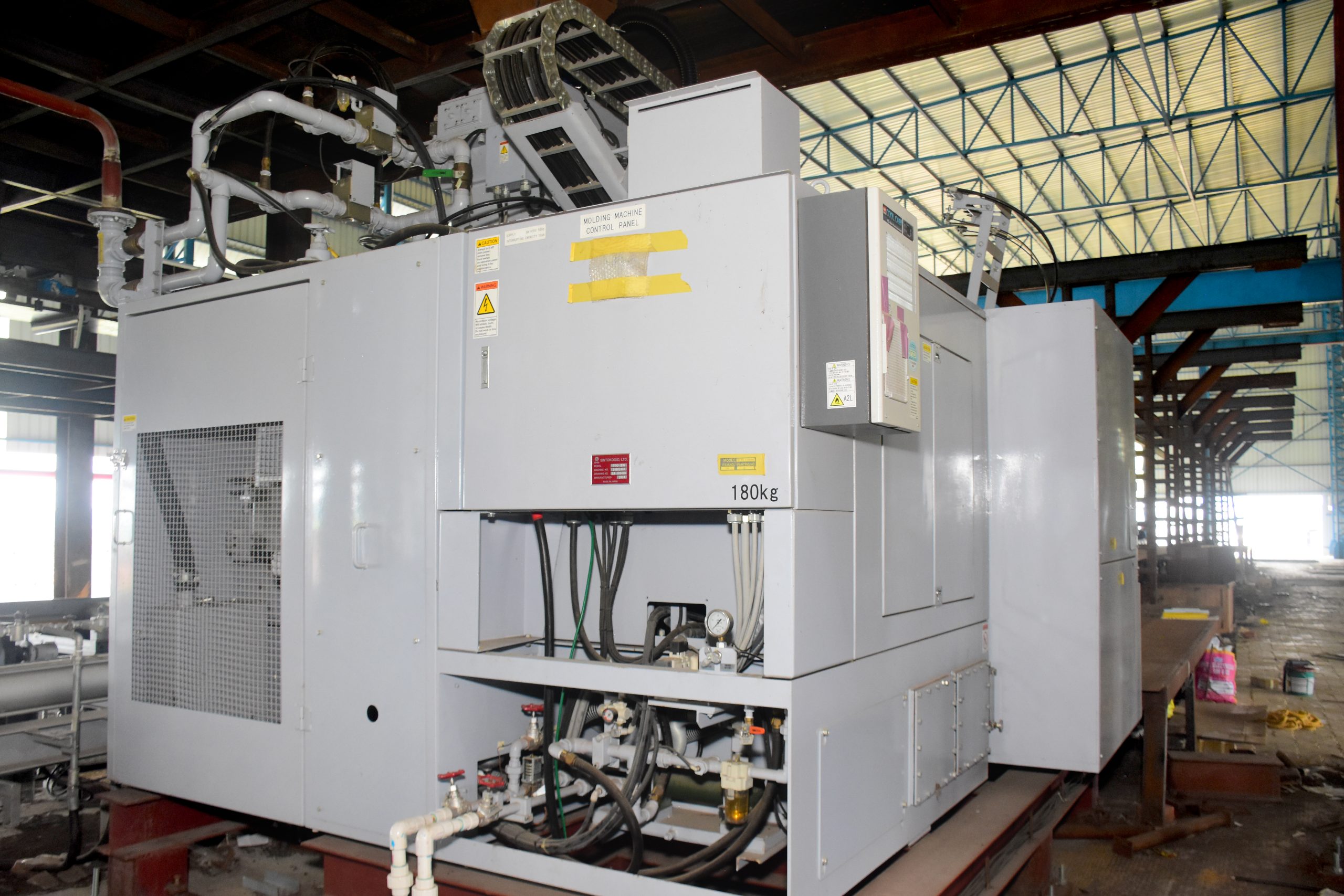

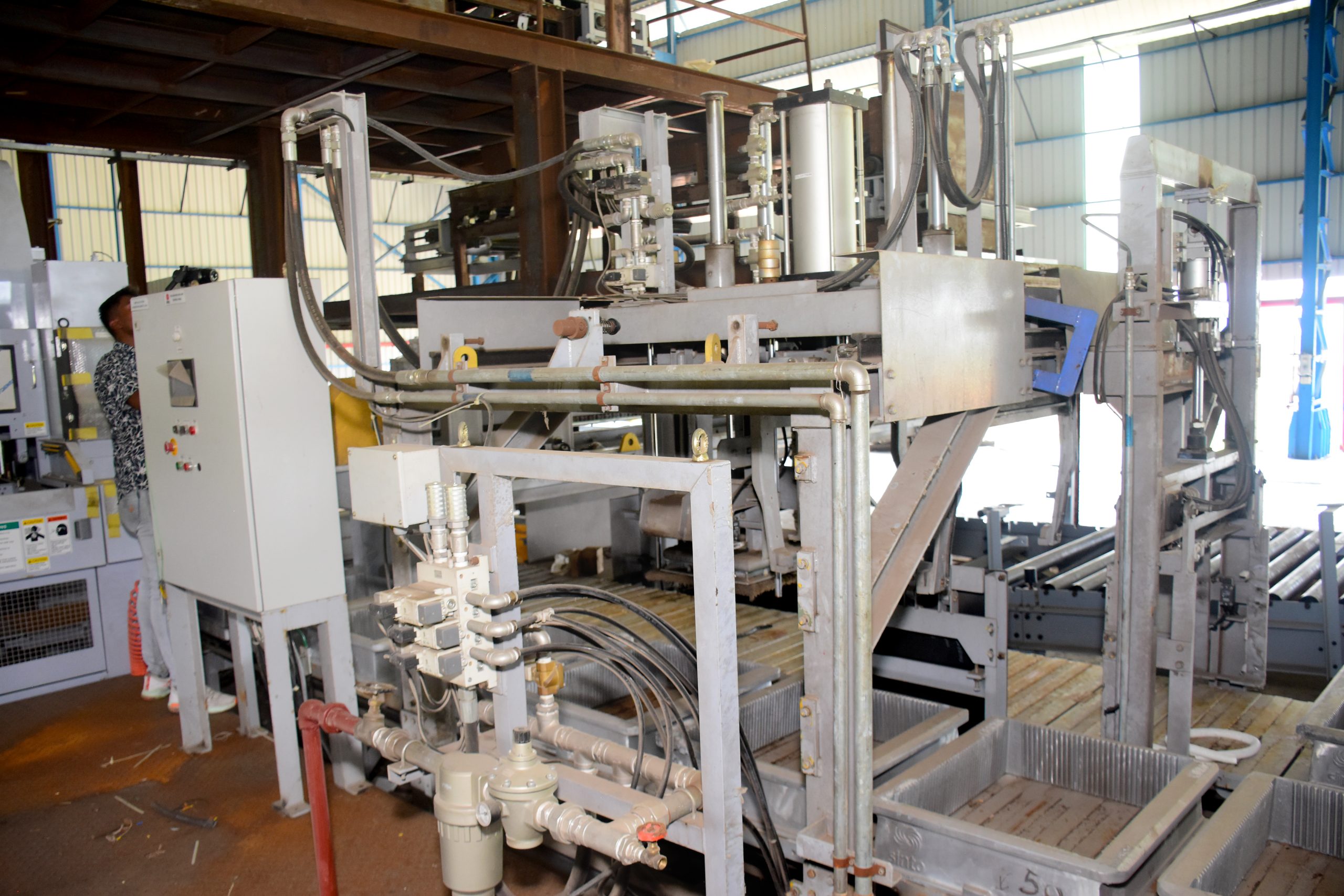

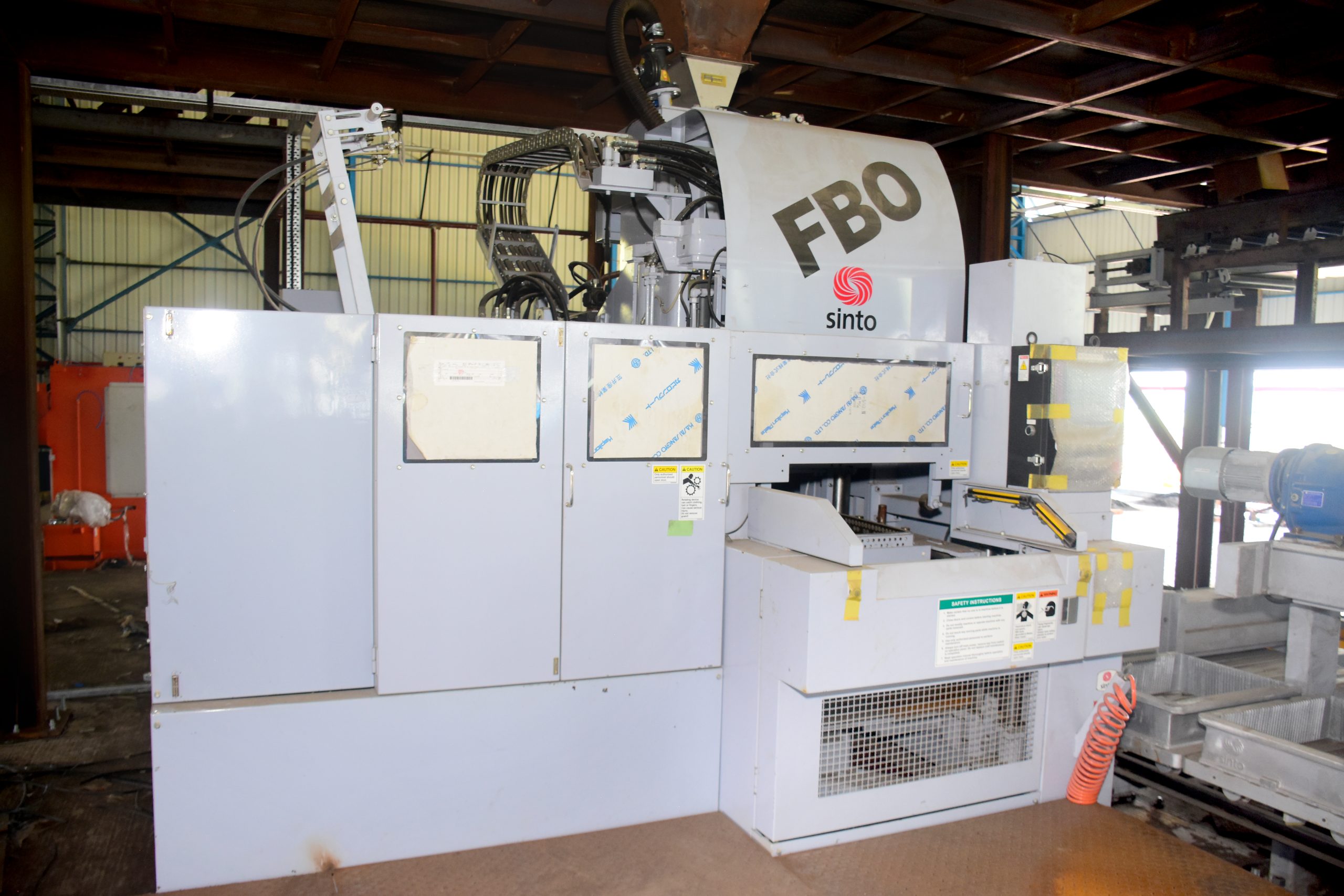

Molding machine manufactured by SINTO JAPAN.

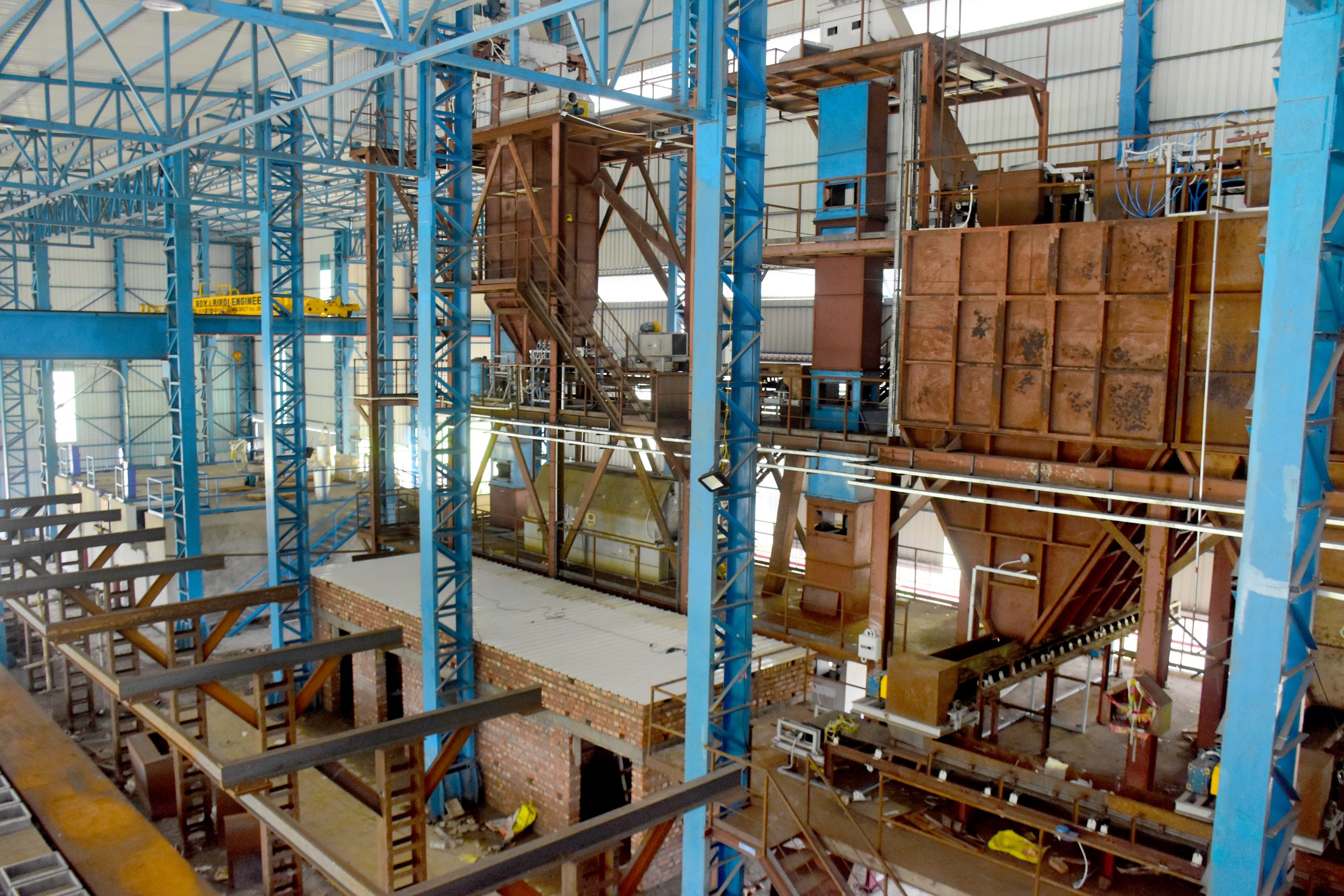

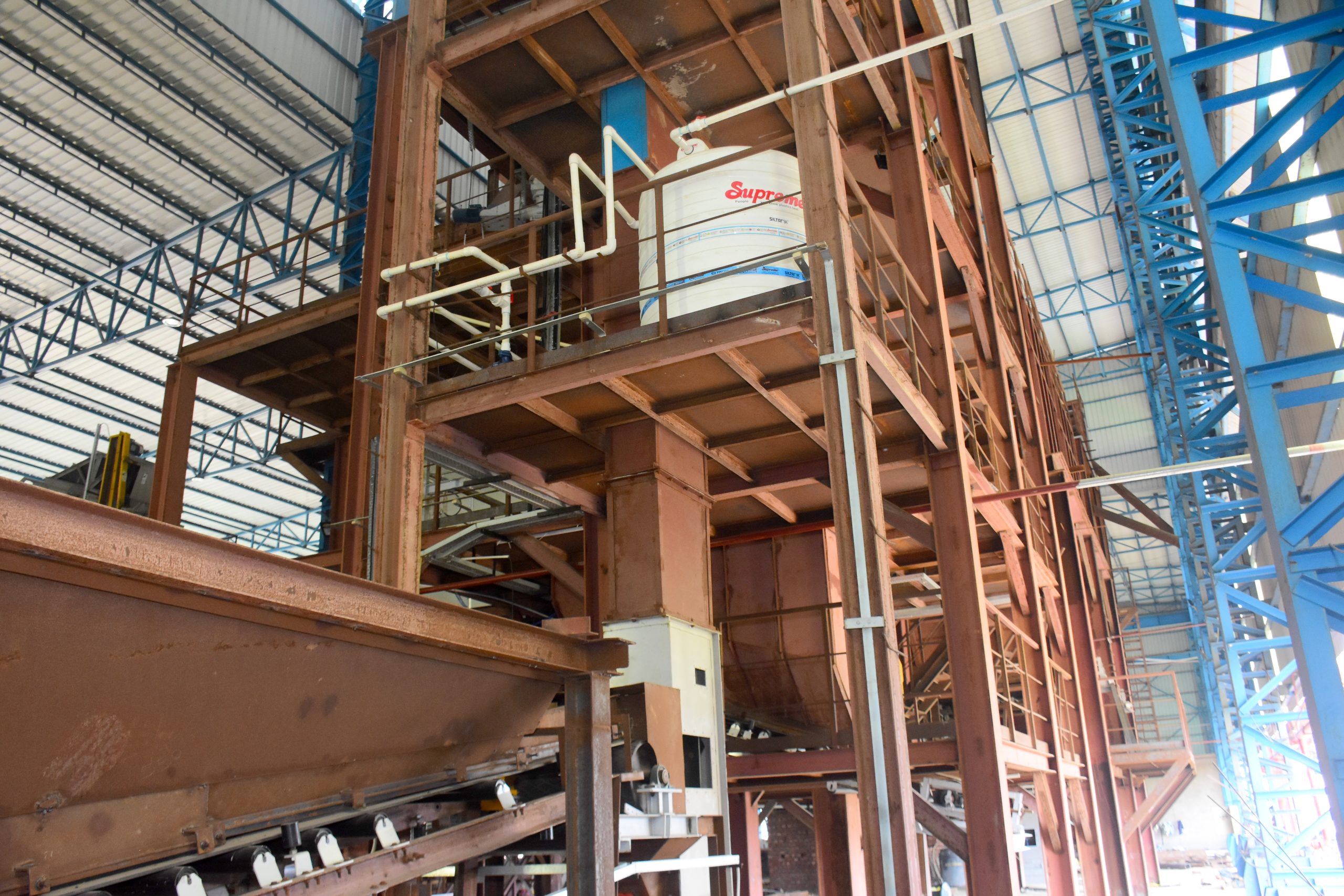

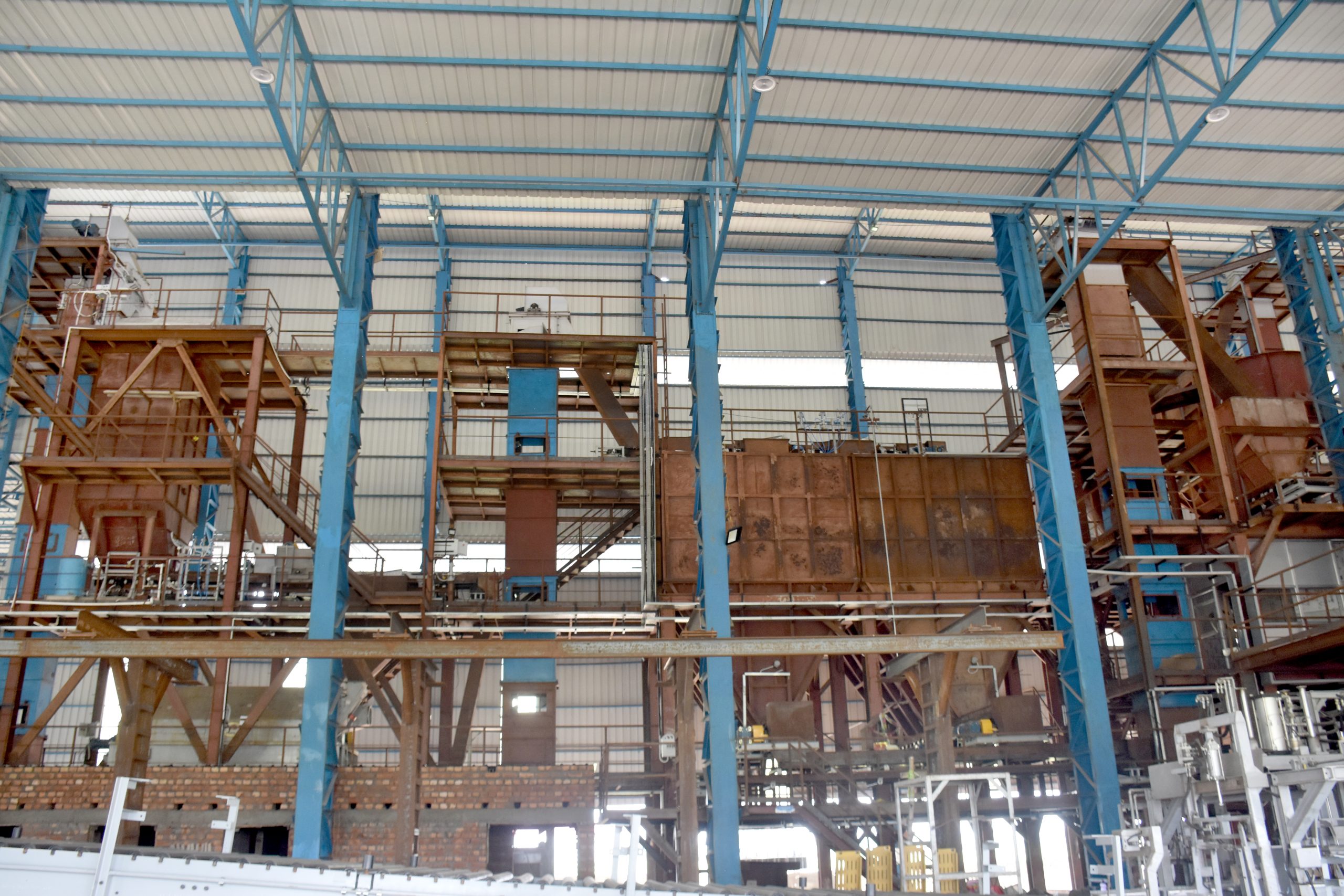

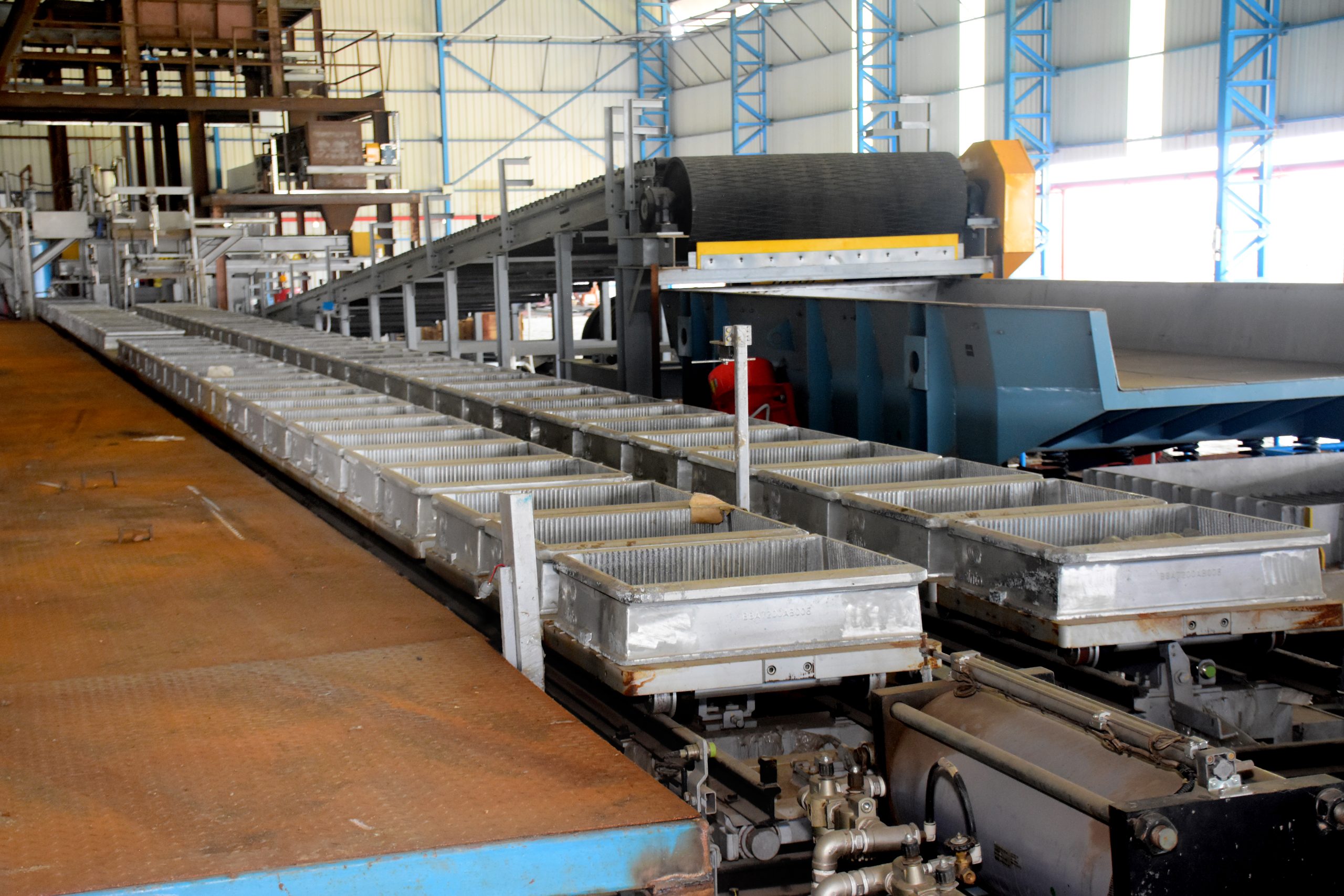

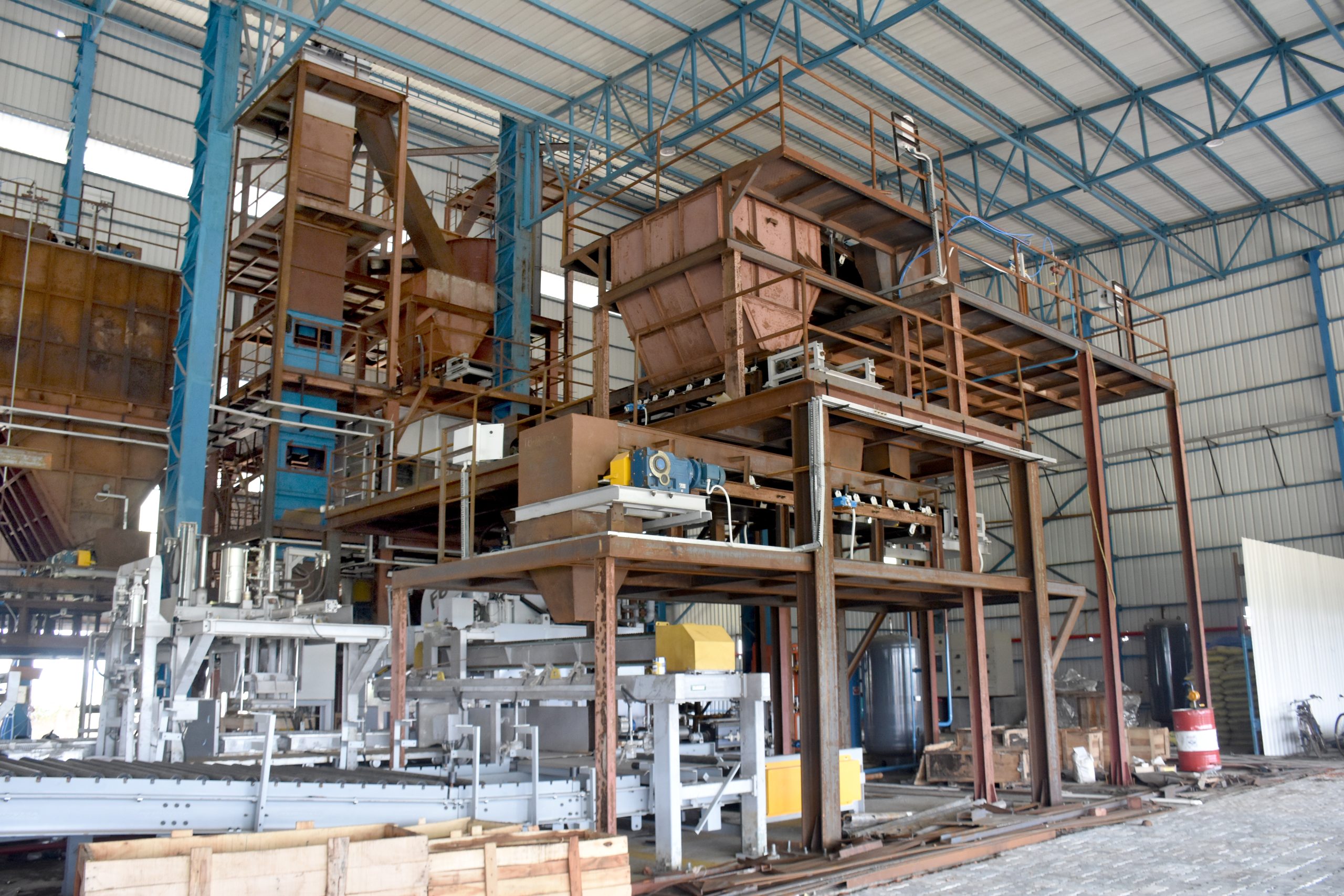

Auto line, secondary line & sand plant manufactured by SINTO INDIA.
Machines manufactured using sate-of-the-art technology and high precision engineering.
The system fully is automated and requires only two skilled operators for handling operation.

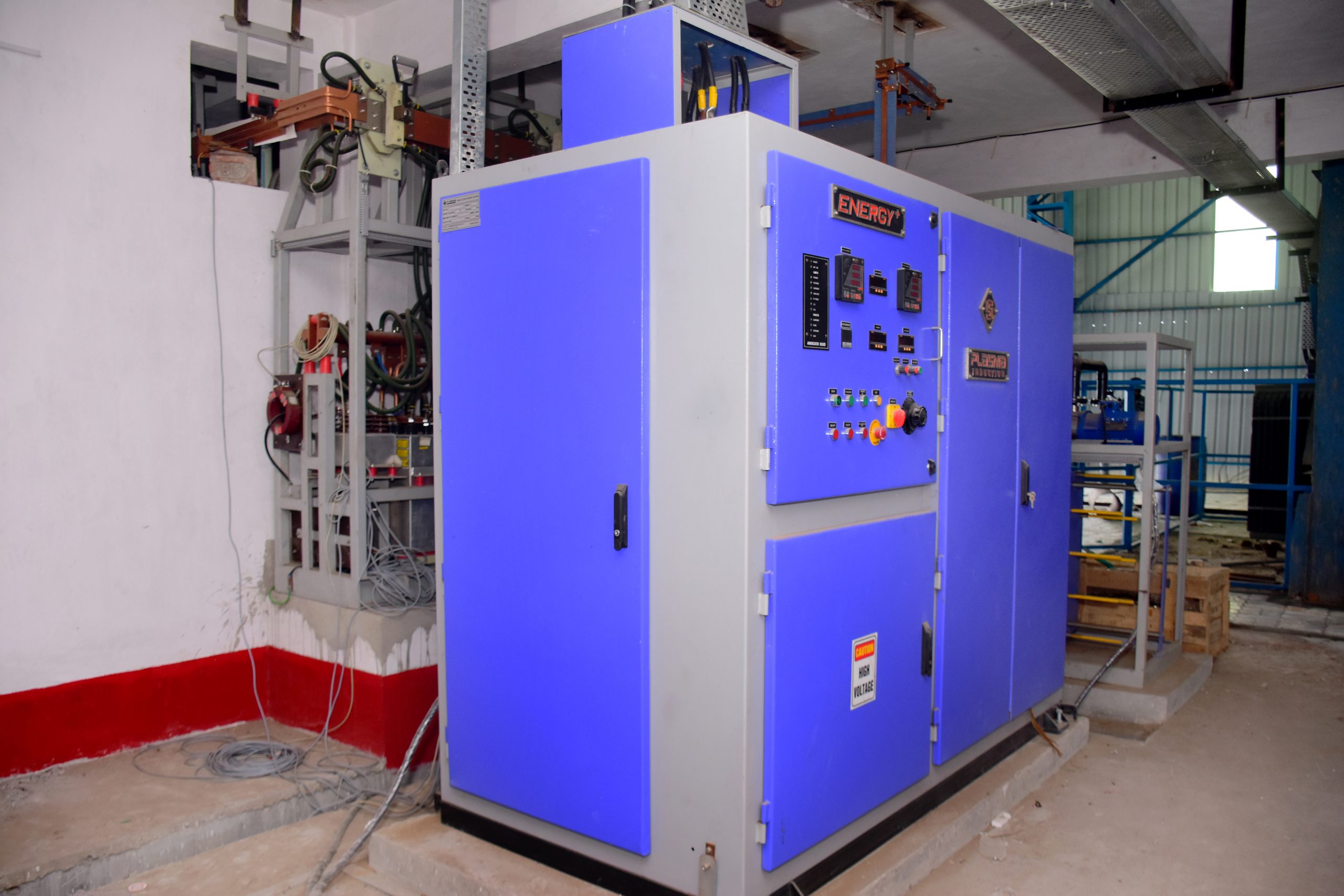

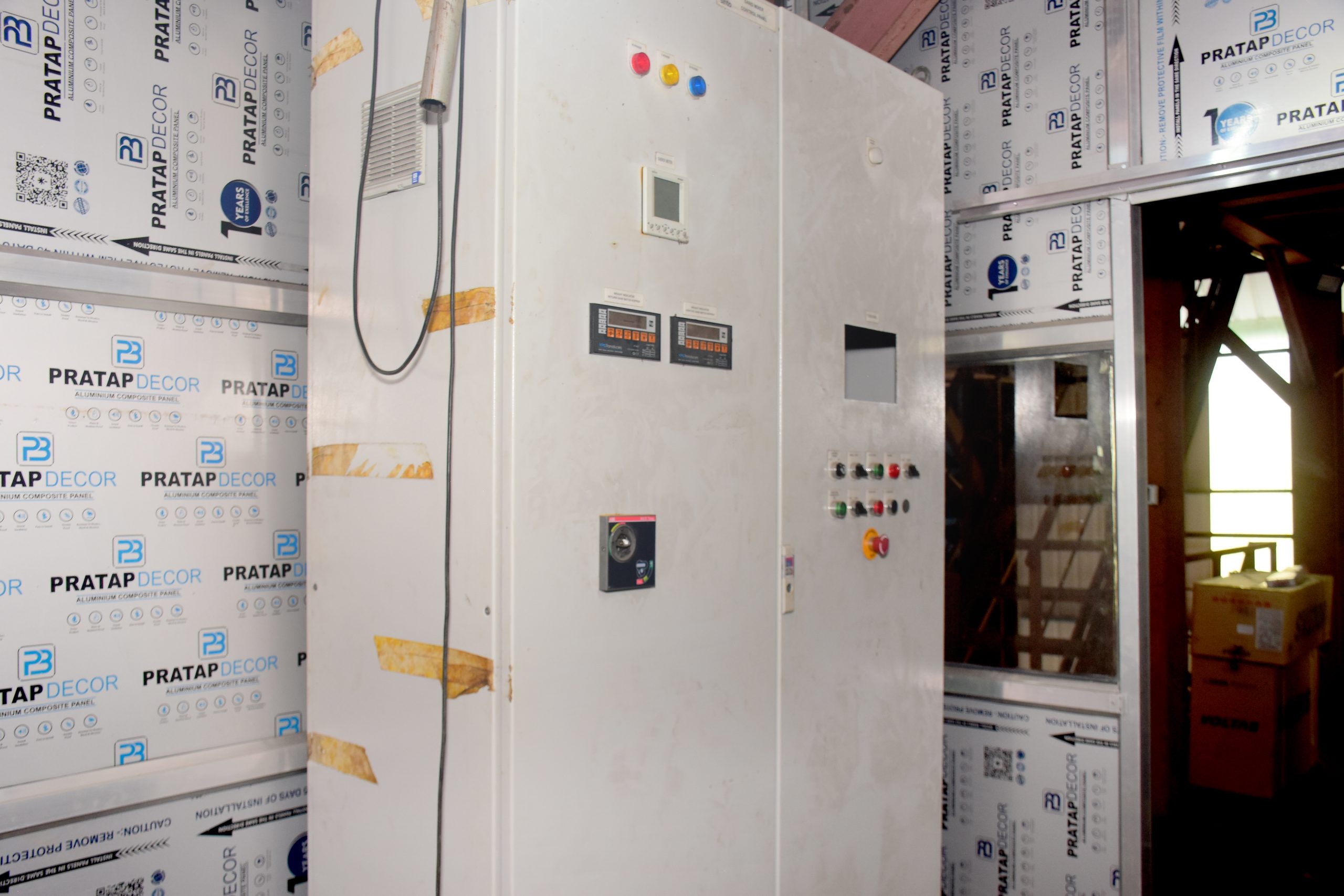

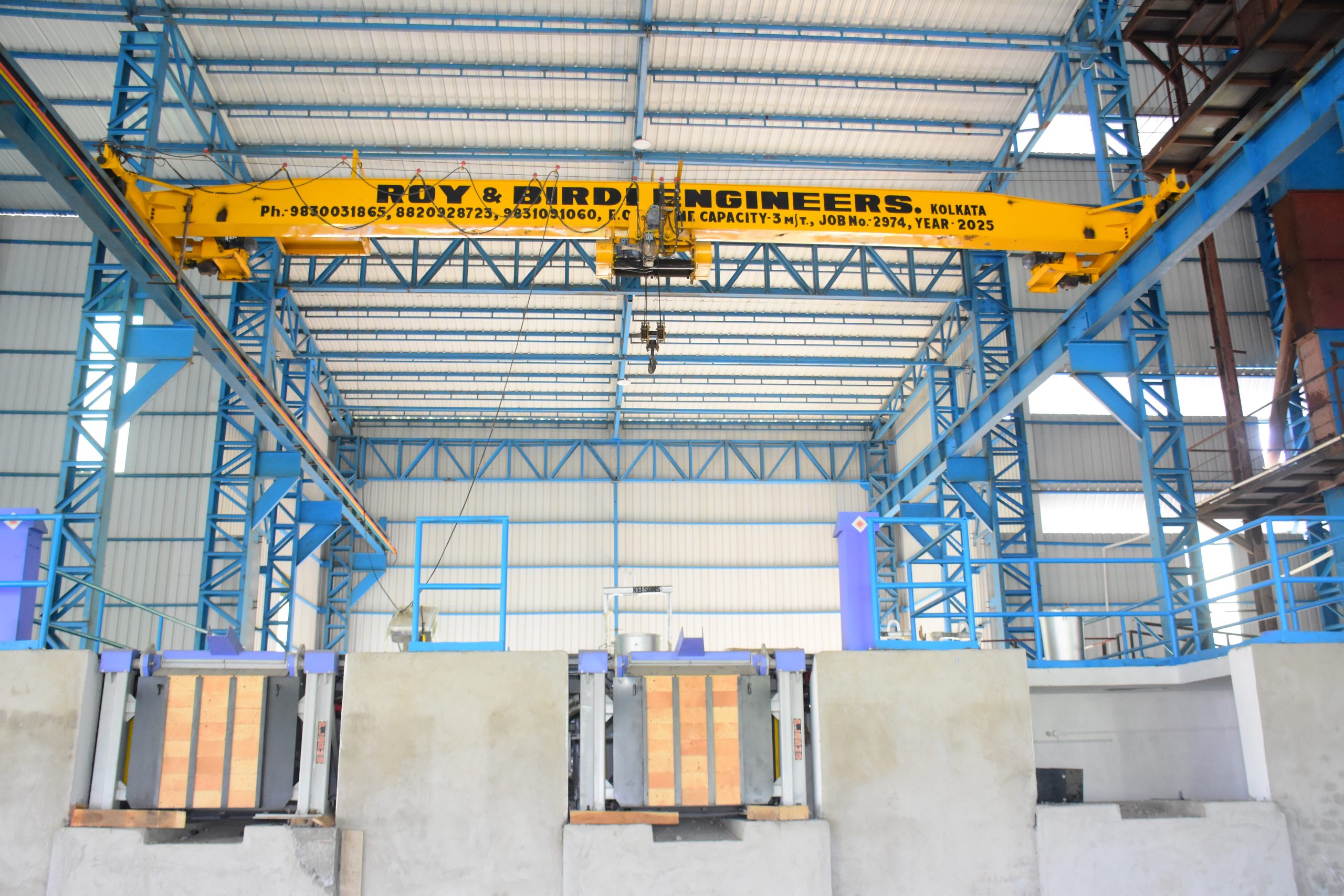

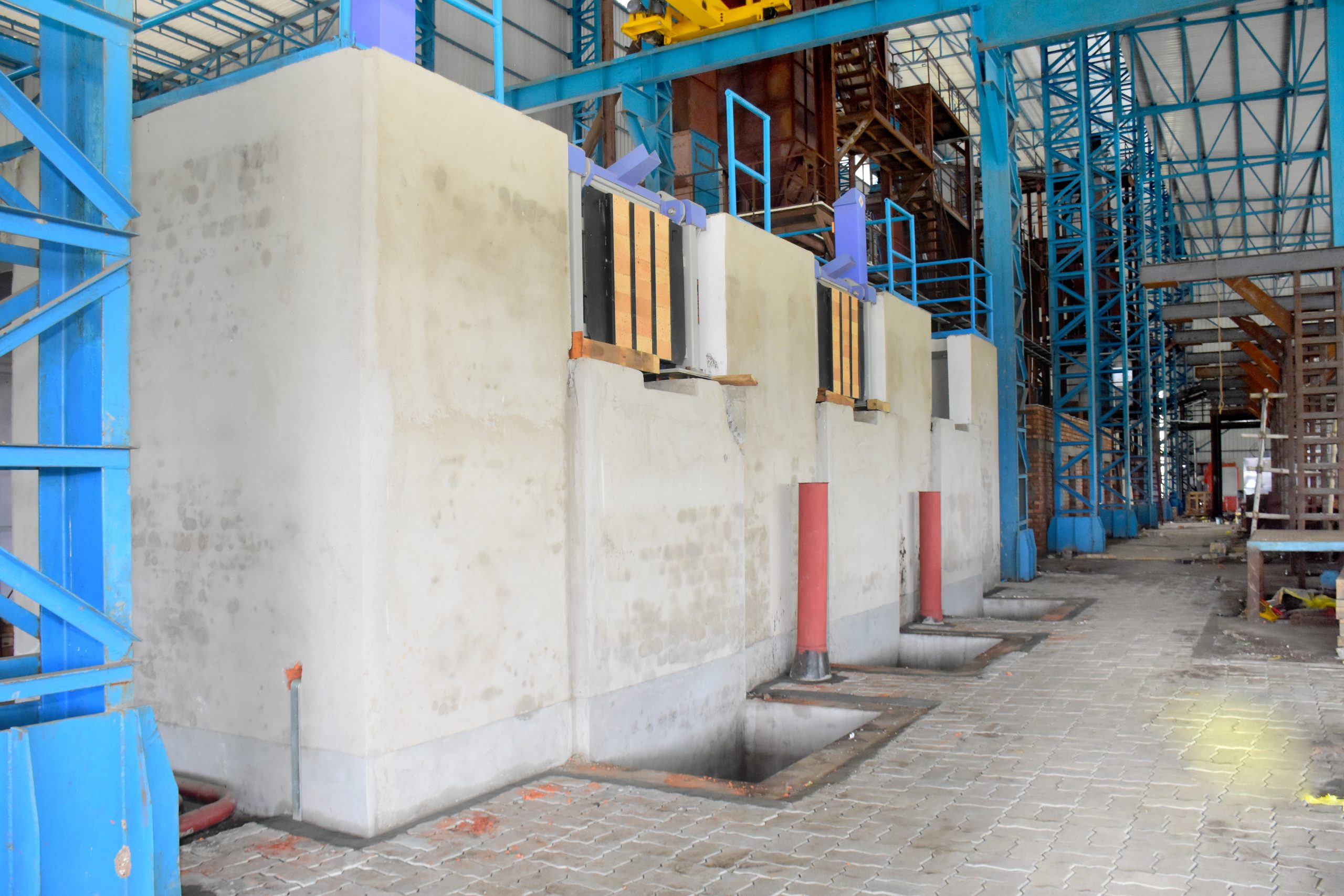

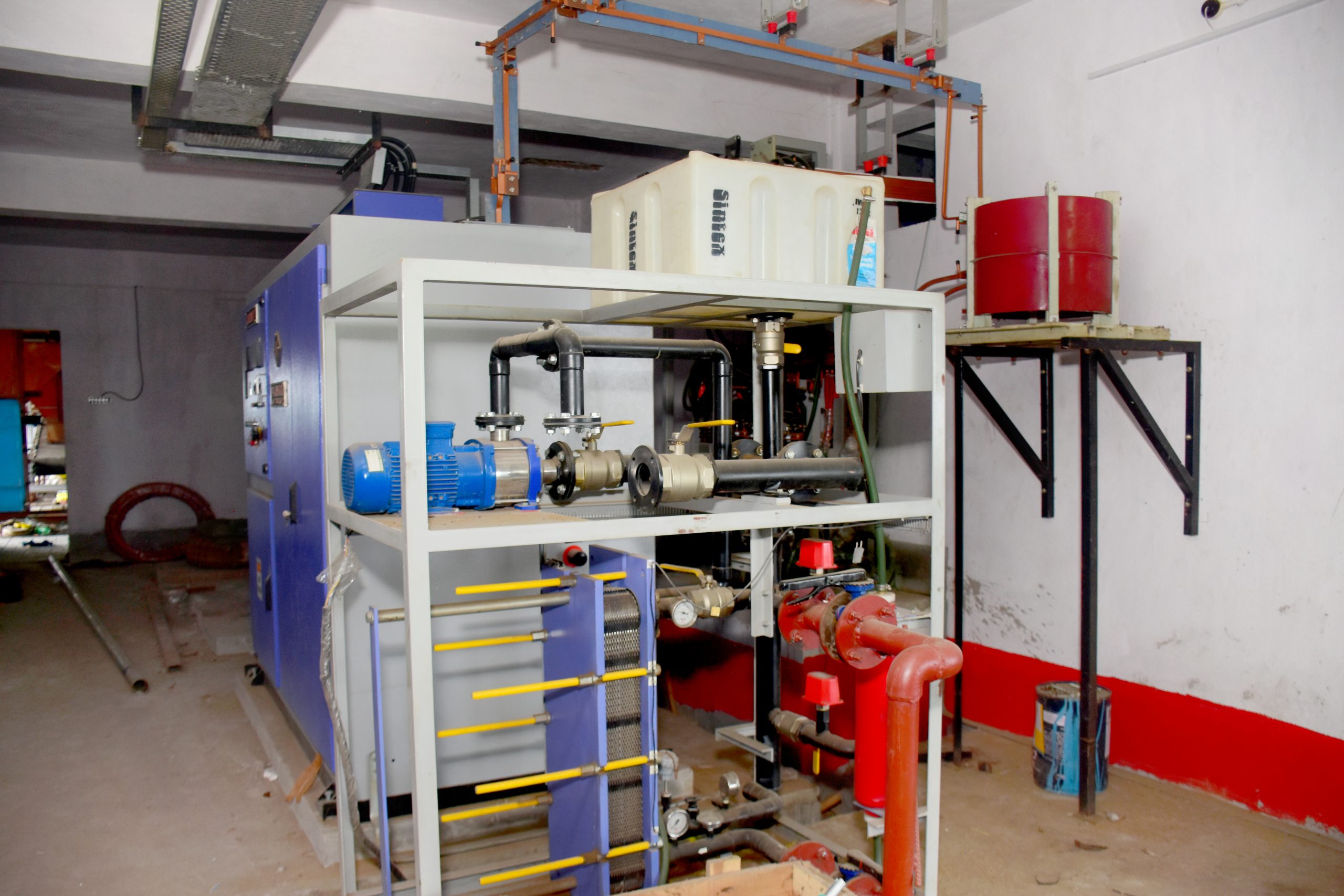

Furnace manufactured by PLASMA INDUCTION
Built entirely using state-of-the- art technology. It features IGBT integration and fully automated centering heat control. It is user-friendly, easy to operate and comes with an inbuilt facility for malfunction detection and is designed for safe operation by machine operators.
Magnesium treatment procedure is cored wire injection system manufacture by SARTHAK METALS LIMITED. Engineered using state-of-the-art technology for superior magnesium result.
- Facility

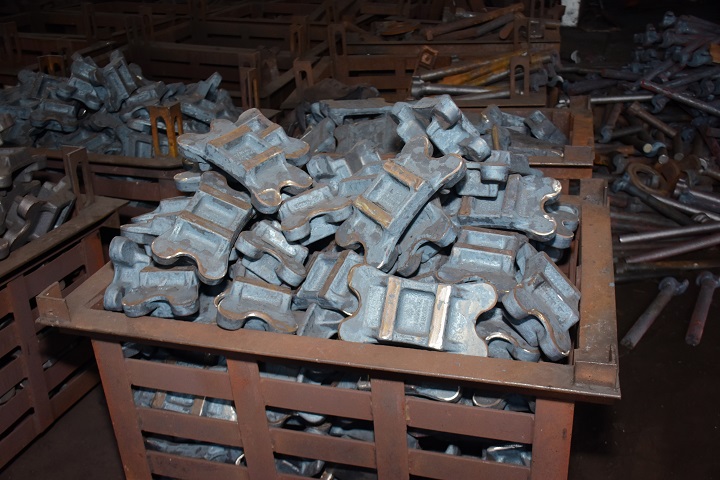

Forging Facility
Infrastructure
- Plant Area : 1 lakh Sq. ft
- Shed Area : 40000 sq. ft.
- Annual Capacity : 10000 MT
- Continous Heat Treatment Furnace
Operational Excellence

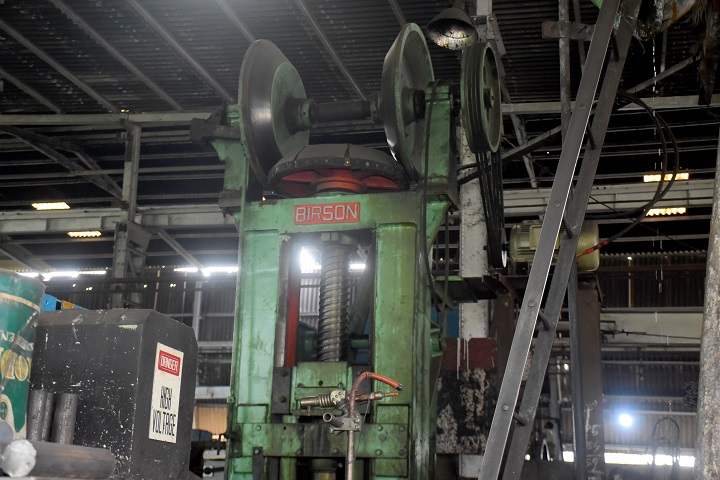

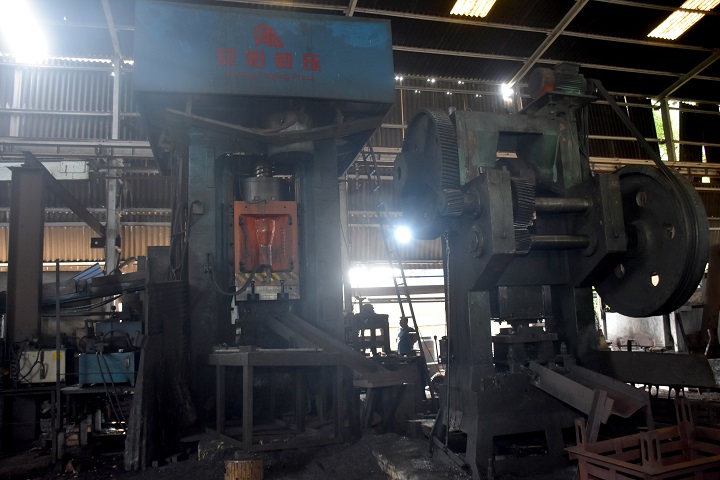

- 1600 Tons Electric Screw Press 2500 KN
- 3.5 Tons Hammer – 1 Nos.
- 1 Ton Hammer – 2 Nos.
- In House Tool Room
- In House Process and Die Design
- Semi Automatic Circular Saw
- In house inspection method by spectrometer
- Shot Blasting capacity @ 500 kgs. Per lot
- Facility
Machining Facility
Infrastructure
- Plant Area : 20000 Sq. ft
- Shed Area : 18000 sq. ft.
- Annual Capacity : 12 Lakhs components per annum
- Line – CNC Turning, CNC Milling, CNC Hobbing , Induction Hardening, CNC OD Grinding
Operational Excellence
- Highly Precision Machining
- Advanced Engineering Standards
- Dedicated Technical Team for New Product Development
- Operations spread across all machining operations
- Testing Methods include – CMM , Rockwell Hardness Test, MPI
- Skilled manpower
Precision Machining
CNC Turning
Multi-axis CNC lathes for high-precision turned components.
Milling & Drilling
Vertical & horizontal machining centers for complex geometries.
Surface & Cylindrical Grinding
Precision grinding for ultra-fine surface finish and tight tolerances.
